Views: 0 Author: Site Editor Publish Time: 2026-08-28 Origin: Site
Transitioning from choosing the perfect Outdoor Playground to actual site preparation marks a critical phase in your project. Planners often focus entirely on equipment aesthetics initially. They quickly realize ground realities demand highly precise spatial planning.
Miscalculating space causes more than just cramped aesthetics in your backyard or community park. It directly leads to failed safety inspections, increased liability risks, and complex post-installation modifications. You simply cannot afford to guess the measurements when child safety is on the line.
This guide provides an objective, standards-based framework to map out your site perfectly. We will explore exact spatial requirements based on established CPSC and ASTM guidelines. You will learn how to calculate precise boundaries and clear obstacles safely before finalizing any equipment purchase.
The Baseline Rule: Stationary playground equipment generally requires a minimum 6-foot (72-inch) safety perimeter, known as the "Use Zone."
Dynamic Exceptions: Moving equipment (swings, slides, merry-go-rounds) requires specialized spacing formulas that exceed the 6-foot baseline.
Overlapping Zones: Certain equipment use zones can safely overlap to save space, provided specific height and mobility criteria are met.
Vertical Clearance: A safe outdoor playground requires a minimum of 84 inches (7 feet) of unencumbered vertical space above the highest designated play surface.
Industry professionals refer to the safety perimeter around equipment as the "Use Zone." You might also hear people call it the fall zone. This designated area sits beneath and immediately adjacent to a play structure. It serves a singular, vital purpose. It dictates exactly where you must install impact-absorbing surfacing.
Children naturally run, jump, and occasionally tumble while playing. The Use Zone anticipates these trajectories. It guarantees a child will land on a cushioned surface rather than hard ground if they slip. You must never treat this zone as an optional recommendation.
The Consumer Product Safety Commission (CPSC) establishes clear baseline rules for stationary equipment. You must maintain at least 6 feet of clearance in all directions. This measurement starts from the outermost perimeter of the stationary play structure. It extends outward to create a protective bubble.
This 6-foot standard applies to climbing walls, activity panels, and static towers. Planners must maintain this space rigorously. Even a minor intrusion into this zone compromises the safety rating of the entire structure.
You will often notice a divide between commercial compliance and residential guidelines. Schools, municipal parks, and Homeowner Associations (HOAs) face strict commercial compliance audits. They must adhere to rigid ASTM standards. Residential guidelines sometimes appear slightly more relaxed in manufacturer manuals.
However, physics and fall risks remain identical regardless of the setting. A child falling from a residential deck experiences the exact same impact forces as a child falling at a public park. We strongly advise applying commercial safety distances to residential projects whenever your yard size permits.
Measuring the Use Zone requires careful attention to detail. Many beginners mistakenly measure from the center support post of a play tower. This is a dangerous error.
You must always measure from the outermost edge of the equipment. Look for overhanging roofs, protruding steps, or extended climbing grips. Drop a plumb line from the furthest extended point to the ground. Measure your 6 feet outward from that exact spot. Your measurement must reach the nearest hard obstacle. This includes perimeter fences, mature tree trunks, retaining walls, or concrete pathways.
Common Mistake: Ignoring structural overhangs when calculating the perimeter. Always measure from the widest external point, not the footprint at ground level.
Stationary guidelines change entirely when equipment starts moving. Dynamic play items introduce momentum. Children swinging or sliding cover more physical distance if they fall. Therefore, dynamic equipment demands specialized spacing formulas. These formulas comfortably exceed the basic 6-foot baseline.
Swings require the largest use zones of any standard play equipment. A child jumping from a moving swing travels a significant distance forward. The CPSC provides a strict swing formula to calculate this space safely.
You must calculate a clearance equal to twice the height of the suspending pivots. Measure this distance from both the front and the rear of the swing seat's resting position.
For example, imagine a swing set beam sits 8 feet high. The suspending pivots rest at this 8-foot mark. You must calculate 16 feet of clearance in front of the swing. You must also calculate 16 feet behind the swing. The total use zone length for this swing bay equals 32 feet.
Slides also require unique exit clearances. A child carries forward momentum as they reach the bottom of the slide chute. The required clearance space directly correlates to the height of the slide platform.
The safety rule states the exit space must equal the height of the slide platform plus 4 feet. However, standard caps apply to this rule. The absolute minimum clearance is always 6 feet. The maximum required clearance caps at 8 feet. Measure this distance starting from the lower exit edge of the slide chute.
Rotational items create unpredictable dismount trajectories. This category includes traditional merry-go-rounds, tire swings, and high-motion installations like an Outdoor Merry Go Cycle. Children can exit these structures in any 360-degree direction.
These installations demand a strict minimum 6-foot clearance. You must measure this from the maximum perimeter of the equipment's operational reach. If a tire swing extends outward during use, measure 6 feet from that furthest extended point.
Furthermore, safety standards impose an absolute prohibition on overlapping use zones for these items. You cannot overlap the fall zone of a rotational piece with any other equipment. The collision risks are simply too severe.
Understanding individual rules is only the first phase. You must now combine these calculations to determine your total site requirement. Haphazard placement quickly leads to unusable layouts. A systematic approach ensures safety and maximizes your available space.
Identify the exact footprint dimensions: Start by mapping the physical dimensions of the proposed equipment itself. Consult the manufacturer's technical specifications for exact measurements. Draw this footprint on grid paper.
Add the mandated Use Zone buffers: Apply the 6-foot rule to all stationary sides. Apply the dynamic formulas to all swings and slides. Draw these expanded boundaries around your initial footprint.
Account for containment borders: Your impact-absorbing surface requires a physical boundary to keep it contained. These retaining borders sit outside the Use Zone. Add another 6 to 12 inches to your total perimeter to accommodate this border material.
Space is often a premium commodity in modern yards. Fortunately, safety guidelines provide specific exceptions for overlapping use zones. This allows you to condense the total footprint safely.
Stationary equipment can often share use zones. The primary condition involves the height of the designated play surfaces. If adjacent stationary play surfaces sit under 30 inches in height, their use zones may overlap. However, you must maintain an absolute minimum of 6 feet between the physical structures themselves.
If play surfaces exceed 30 inches in height, the minimum distance between the physical structures increases to 9 feet. This ensures adequate buffering if two children fall simultaneously from adjacent elevated platforms.
Implementation Risk: Misapplying overlap rules remains a primary cause of failed safety audits. Planners often attempt to overlap the use zone of a swing with a stationary climbing wall. You must never overlap dynamic use zones with any other equipment zone.
Theoretical paper plans frequently clash with physical site realities. A beautifully drawn site map means little if underground obstacles prevent installation. You must assess the physical environment thoroughly before breaking ground.

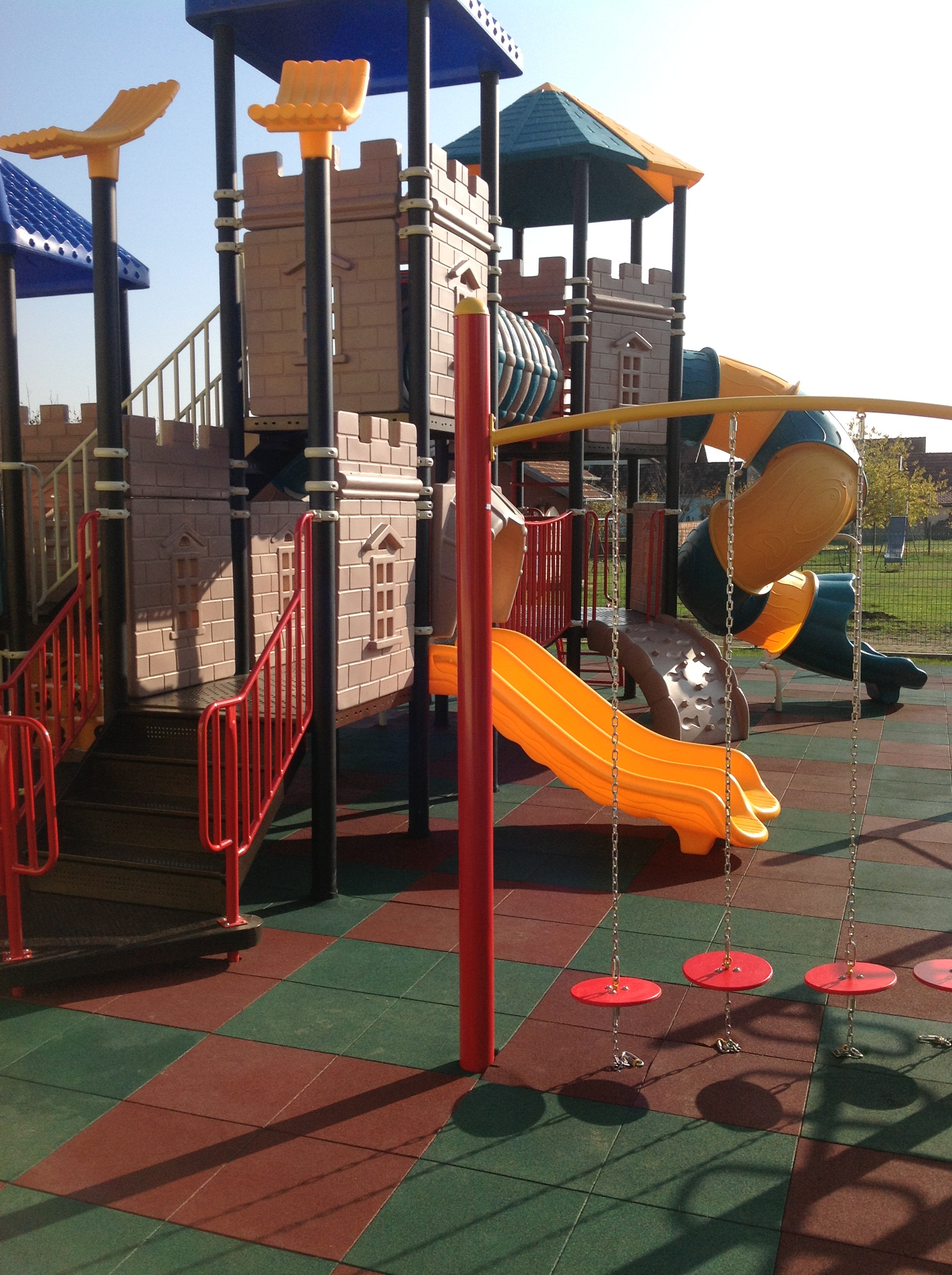

Safety surfacing forms the foundation of your use zone. Popular materials include engineered wood fiber (mulch) or poured-in-place rubber. Loose-fill materials require sturdy retaining borders to prevent displacement over time.
You must place these retaining borders entirely outside the calculated use zone. Why? Borders consist of hard materials like heavy timber, molded plastic, or concrete. If a child falls into the outer edge of the use zone, they must land on safety surfacing. They should never fall directly onto a hard retaining wall. Always expand your total site footprint to accommodate the width of the border itself.
Look beyond flat dimensions. Evaluate your site for hidden environmental risks. Mature tree roots pose significant challenges. Excavating for a playground border can damage shallow root systems, killing the tree. Conversely, growing roots can buckle protective playground surfacing over time.
Underground utility lines dictate exactly where your play space can sit. You must contact local utility locators before finalizing your footprint. Irrigation systems also present hidden hurdles. Sprinkler heads and PVC pipes often require costly rerouting to accommodate a new playground foundation.
Spatial planning extends upwards. Planners frequently forget to measure vertical clearance. A safe play environment requires a minimum of 84 inches (7 feet) of unencumbered vertical space.
Measure this 84-inch clearance starting from the highest designated play surface. This might be the roof of a play fort or the top rung of a climbing ladder. This vertical space must remain entirely free of hazards. Watch out for overhanging tree limbs, electrical power lines, and structural roof eaves.
Sometimes, site evaluations reveal a harsh truth. Your yard is simply too small for your initial equipment wishlist. You must learn to pivot your choices strategically. Forcing oversized equipment into a small space compromises legal safety boundaries.
Identify the most space-consuming elements first. Traditional swing bays require massive footprints due to their extensive front and rear use zones. If your site lacks depth, you must reconsider the swing.
Swap high-space requirements for low-space alternatives. You can replace a traditional swing set with built-in monkey bars or a stationary climbing wall. These stationary items only require the baseline 6-foot clearance. This simple trade-off saves hundreds of square feet while maintaining high play value.
We strongly recommend evaluating modular Outdoor Playground systems for challenging spaces. Fixed-footprint designs offer zero flexibility. If a rigid structure hits a tree root boundary, the entire project halts.
Modular systems allow for custom configurations. You can route an elevated crawl tunnel around a mature tree. You can position the slide exit to perfectly align with the widest part of your yard. Modularity helps you navigate tight or uniquely shaped environments seamlessly.
Do not order equipment based solely on visual estimates. Plot your yard physically. Drive wooden stakes into the ground at the proposed equipment corners. Run bright string lines to mark the use zones and border perimeters.
Walk around this stringed outline. Does it block a pathway? Does it sit too close to the patio? Alternatively, request a 2D or 3D CAD site plan from your manufacturer. Validating your physical space prevents expensive return shipping and redesign fees.
Equipment Type | Base Footprint Risk | Required Safety Clearance | Overlap Allowed? |
|---|---|---|---|
Stationary Climber (Under 30" tall) | Low | 6 feet all directions | Yes (with other stationary items) |
Standard Slide Exit | Medium | Platform Height + 4 ft (Min 6ft) | No |
Traditional Swing Set | High | 2x Pivot Height (Front & Back) | No |
Rotational (Merry-Go-Round) | High | 6 feet from maximum operational reach | Strictly No |
Precise spatial planning remains a non-negotiable prerequisite for safety and long-term compliance. Securing the exact dimensions of your use zones protects children from severe impact injuries. It also protects property owners from costly legal liabilities and failed safety inspections.
We encourage all buyers to formalize their site measurements before committing to an equipment invoice. You must finalize your physical boundaries, map out the retaining borders, and account for underground obstacles.
Take the time to consult specific manufacturer manuals. Verify all dynamic spacing formulas for your unique slide and swing configurations prior to ordering. A well-planned footprint guarantees a stress-free installation and decades of safe, active play.
A: No. The use zone must end before it reaches any hard structure, including property fences. You must maintain the required clearance (usually a minimum of 6 feet) between the equipment and the fence to prevent a child from colliding with the fence mid-fall.
A: Generally, no. Ground-level play equipment like sandboxes or ground-level activity panels do not pose an elevated fall risk. Because there is no vertical impact risk, they typically do not require specialized impact-absorbing surfacing or expanded use zones.
A: Standard safety guidelines dictate minimum spacing between swings. You should maintain at least 24 inches of clearance between adjacent swing seats. Additionally, you must leave at least 30 inches of space between a swing seat and the adjacent support frame.
A: No. While grass looks soft, high foot traffic quickly compacts the underlying soil. This compaction turns dirt into a hard, unforgiving surface during dry weather or freezing temperatures. The CPSC specifically advises against grass and turf for high-traffic fall zones.
