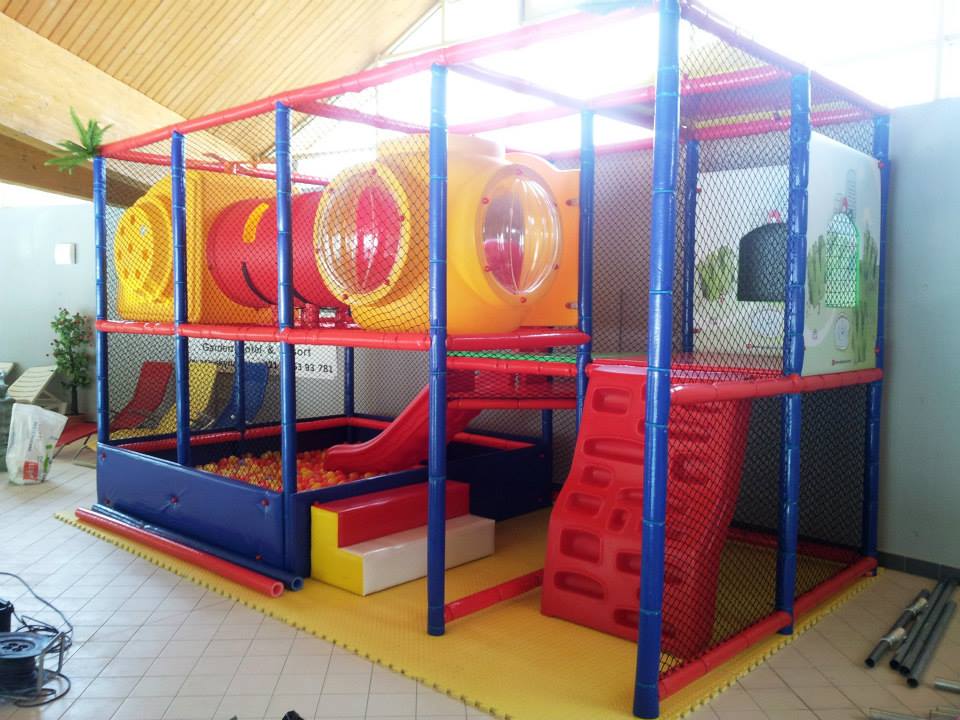

McDonalds Toddler Indoor Soft Playground

Soft Playground Component Instruction

1. Galvanized Steel Pipe

Diameter: 48mm, thickness: 1.5~2.5mm

Standard horizontal tube width: 117cm, each floor height: 140cm, can be adjusted according to the customer's site



2. Feet

On the ground link with vertical Galvanized Steel Pipe, make sure structure stability

2 different materials:

Metal, welding with Galvanized Steel Pipe

Plastic, independent accessories, put on the Galvanized Steel Pipe

3. Fastener

The shape of the fasteners is different depending on the joints.

Material: cast iron

4. Galvanized Steel Pipe Soft Cover

1.5mm PVC+1.5cm foam, length 2.5m

5. Clamps

To fix the Galvanized Steel Pipe Cover on the Galvanized Steel Pipe

Width: 8mm, length: 25cm

6. Protect Net

No Knot Net: hole 4x4cm, width 3m, black, yellow, white

Knot Rope Net: hole 4x4cm, width 3m, black, yellow, white

Fine Net: hole 8mm, width 2m, black

7. Tie Rope

To fix the protect net on the Galvanized Steel Pipe

8. Ground Soft Padding

Material: EVA

High density, Eco

Thickness: 2cm

Size: 100x100cm

9. Plastic Parts

Material: LLDPE (Food grade, Non-toxic)

720 degree heating molding by rotomolding furnace, product thickness 8-10mm



10. Soft Parts

Soft parts including kids soft play toys, structure platforms, play obstacles, ball pit

Soft parts made with wood, foam, PVC

Different accessories have different thickness of wood and foam

Sharp and corner part use bumper strip

Platform: 1.5cm Wood+3cm Foam+PVC

Kids Play Toys: 22cm foam+PVC

11. Braided Net Parts

Webbing width: 5cm (Different usage, slightly different thickness)

12. Net Rope Structure

Customized height, diameter

Roof ceiling connection

Ground steel pipe support

13. Gun Games

A complete gun game set including guns, Air Compressor, soft foam balls

14. Fibreglass (Fiber Reinforced Plastic)

It has 2 equipment made with fibreglass, Fibreglass Slides and Fibreglass Decoration Board

15. Slides

Donut Slides

Fibreglass Slides

Handmade Slides

PE Board Slides

Plastic Slides

Roller Slides

Stainless Slides

Vertical Slides

Volcano Slides

16. Electric Equipment

Suitable for toddlers

17. Puzzle

Material: German Beech, water-based paint

Can be installed on steel shelves or fixed to the wall

18. Interactive Equipment

19. Ball Pit Games

20. Climbing Structure

21. Zipline

22. Trampoline

Steel Frame: Black Carbon Steel

Jumping Mat: PP Mash with double layers

Spring: Galvanized 65 Manganese

23. Rope Course
